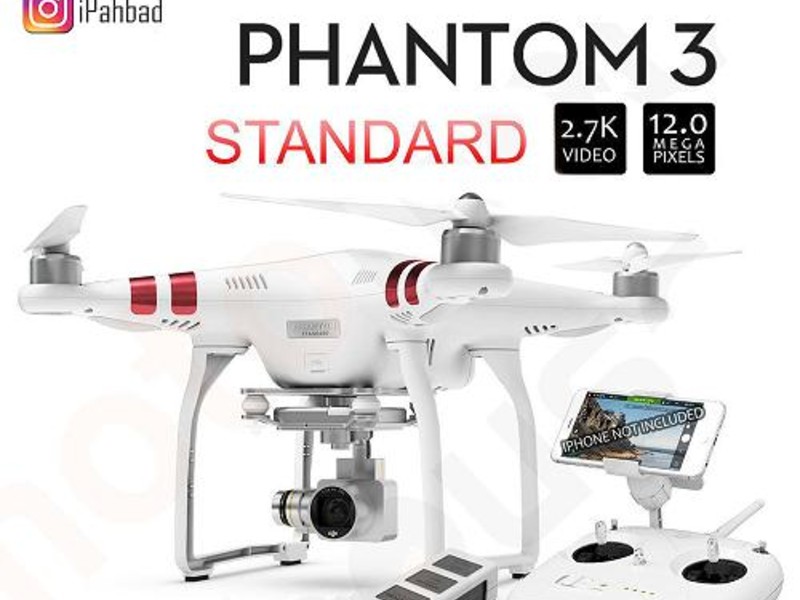

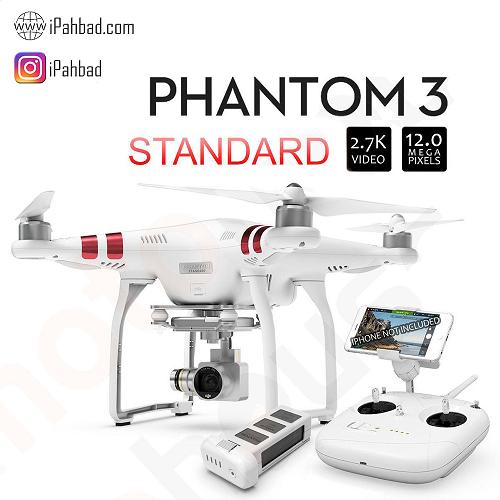

کواد کوپتر حرفه ای فانتوم DJI Phantom 3 Standard

کواد کوپتر حرفه ای فانتوم 3 استاندارد
امتیاز 5 از 5 توسط 1 کاربر
ناموجود

موجود شد به من اطلاع بده

AIRCRAFT

Weight (Battery & Propellers Included) 1216 g
Diagonal Size (Propellers Excluded) 350 mm
Max Ascent Speed 5 m/s
Max Descent Speed 3 m/s
Max Speed 16 m/s (ATTI mode)
Max Service Ceiling Above Sea Level 19685 feet (6000 m)
Max Flight Time Approx. 25 minutes
Operating Temperature Range 32° to 104°F (0° to 40°C)
Satellite Positioning Systems GPS

CAMERA

Sensor 1/2.3” CMOS
Effective pixels:12 M
Lens FOV 94° 20 mm (35 mm format equivalent) f/2.8
ISO Range
  • 100-3200 (video)
  • 100-1600 (photo)
Electronic Shutter Speed 8 - 1/8000 s
Max Image Size 4000×3000
Still Photography Modes
  • Single Shot
  • Burst Shooting: 3/5/7 frames
  • Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
  • Timelapse
Video Recording Modes
  • 2.7K: 2704 x1520p 24/25/30 (29.97)
  • FHD: 1920x1080p 24/25/30
  • HD: 1280x720p 24/25/30/48/50/60
Max Video Bitrate 40 Mbps
Supported File Systems FAT32 (≤32 GB); exFAT (>32 GB)
Photo JPEG, DNG (RAW)
Video MP4, MOV (MPEG-4 AVC/H.264)
Supported SD Cards Micro SD Card 8 GB included
Operating Temperature Range 32° to 104°F (0° to 40°C)

GIMBAL

Controllable Range Pitch: -90° to +30°
Stabilization 3-axis (pitch, roll, yaw)

REMOTE CONTROLLER

Operating Frequency 5.725 - 5.825 GHz, 922.7 - 927.7 MHz (Japan)
Max Transmission Distance FCC: 1000 m
CE: 500 m
(outdoors and unobstructed, aircraft's altitude at 400 feet (120 m))
Operating Temperature Range 32° to 104°F (0° to 40°C)
Battery 2600 mAh LiPo 18650
Transmitter Power (EIRP)
  • FCC: 19 dBm
  • CE: 14 dBm
Operating Current/Voltage 600 mA@3.7V
Charging Port Micro USB

INTELLIGENT FLIGHT BATTERY

Capacity 4480 mAh
Voltage 15.2 V
Battery Type LiPo 4S
Energy 68 Wh
Net Weight 365 g
Operating Temperature Range 14° to 104°F (-10° to 40°C)
Max Charging Power 100 W

CHARGER

Voltage 17.4 V
Rated Power 57 W

APP / LIVE VIEW

Mobile App DJI GO
EIRP 100mW
Live View Working Frequency 2.4GHz ISM
Live View Quality 720P @ 30fps
Latency Low Latency Video (depending on conditions and mobile device)
Required Operating Systems
  • iOS 8.0 or later
  • Android 4.1.2 or later
Recommended Devices
  • ios: iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPod touch 6, iPad Pro, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4, and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s and iPhone 6s Plus.
  • Android: Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei Mate 8, Nubia Z7 mini, SONY Xperia Z3, MI 3, MI PAD

*Support for additional Android devices available as testing and development continues.

Power Spectral Density 6.9mW/MHz
