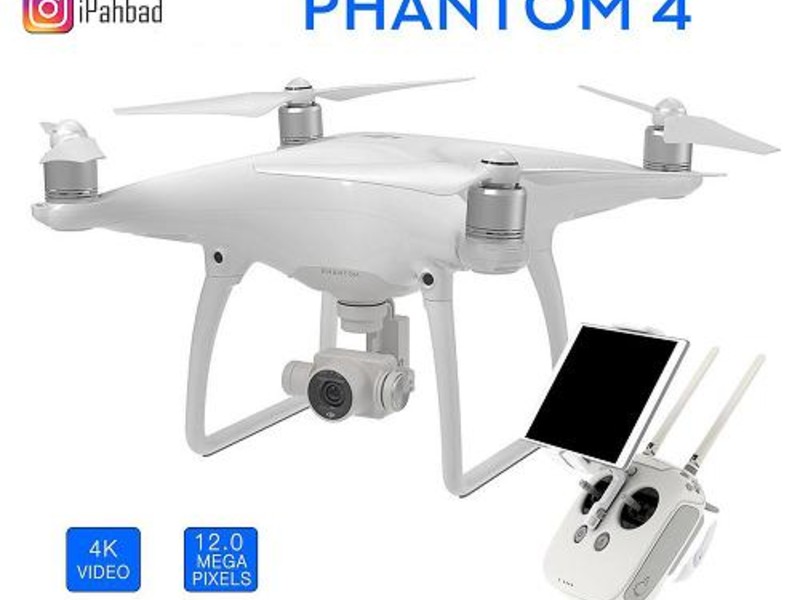

کوادکوپتر حرفه ای فانتوم DJI Phantom 4

کوادکوپتر فانتوم 4 یا همان هلیشات فانتوم 4 اولین تولید شرکت DJI در سری 4 است که با قروش بسیار زیادی مواجه شد.
امتیاز 5 از 5 توسط 1 کاربر
به زودی

موجود شد به من اطلاع بده

AIRCRAFT

Weight (Battery & Propellers Included) 1380 g
Diagonal Size (Propellers Excluded) 350 mm
Max Ascent Speed S-mode: 6 m/s
Max Descent Speed S-mode: 4 m/s
Max Speed S-mode: 20 m/s
Max Service Ceiling Above Sea Level 19685 feet (6000 m)
Max Flight Time Approx. 28 minutes
Operating Temperature Range 32° to 104°F (0° to 40°C)
Satellite Positioning Systems GPS/GLONASS
Hover Accuracy Range Vertical:
±0.1 m(with Vision Positioning)
±0.5 m
Horizontal:
±0.3 m(with Vision Positioning)
±1.5 m

VISION SYSTEM

Vision System Forward Vision System
Downward Vision System
Velocity Range ≤10 m/s (2 m above ground)
Altitude Range 0 - 33 feet (0 - 10 m)
Operating Range 0 - 33 feet (0 - 10 m)
Obstacle Sensory Range 2 - 49 feet (0.7 - 15 m)
Operating Environment Surface with clear pattern and adequate lighting (lux>15)

CAMERA

Sensor 1/2.3” CMOS
Effective pixels:12.4 M
Lens FOV 94° 20 mm (35 mm format equivalent) f/2.8 focus at ∞
ISO Range
  • 100-3200 (video)
  • 100-1600 (photo)
Electronic Shutter Speed 8 - 1/8000 s
Max Image Size 4000×3000
Still Photography Modes Single shot
Burst shooting: 3/5/7 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Timelapse
HDR
Video Recording Modes UHD: 4096×2160 (4K) 24 / 25p
3840×2160 (4K) 24 / 25 / 30p
2704×1520 (2.7K) 24 / 25 / 30p
FHD: 1920×1080 24 / 25 / 30 / 48 / 50 / 60 / 120p
HD: 1280×720 24 / 25 / 30 / 48 / 50 / 60p
Max Video Bitrate 60 Mbps
Supported File Systems FAT32 (≤32 GB); exFAT (>32 GB)
Photo JPEG, DNG (RAW)
Video MP4, MOV (MPEG-4 AVC/H.264)
Supported SD Cards Micro SD
Max capacity: 64 GB
Class 10 or UHS-1 rating required
Operating Temperature Range 32° to 104°F (0° to 40°C)

GIMBAL

Controllable Range Pitch: -90° to +30°
Stabilization 3-axis (pitch, roll, yaw)

REMOTE CONTROLLER

Operating Frequency 2.400 - 2.483 GHz
Max Transmission Distance FCC Compliant: 3.1 mi (5 km)
CE Compliant: 2.2 mi (3.5 km)
(Unobstructed, free of interference)
Operating Temperature Range 32° to 104°F (0° to 40°C)
Battery 6000 mAh LiPo 2S
Transmitter Power (EIRP)
  • FCC: 23 dBm
  • CE: 17 dBm
Operating Current/Voltage 1.2 A@7.4 V

INTELLIGENT FLIGHT BATTERY

Capacity 5350 mAh
Voltage 15.2 V
Battery Type LiPo 4S
Energy 81.3 Wh
Net Weight 462 g
Operating Temperature Range 14° to 104°F (-10° to 40°C)
Max Charging Power 100 W

CHARGER

Voltage 17.4 V
Rated Power 100 W

APP / LIVE VIEW

Mobile App DJI GO
EIRP 100mW
Power Spectral Density 6.9mW/MHz
Live View Working Frequency 2.4GHz ISM
Live View Quality 720P @ 30fps
Latency 220ms (depending on conditions and mobile device)
Required Operating Systems
  • iOS 8.0 or later
  • Android 4.1.2 or later
Recommended Devices
  • ios: iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPod touch 6, iPad Pro, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4, and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, iPhone 6 Plus, iPhone 6s and iPhone 6s Plus.
  • Android: Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei Mate 8, Nubia Z7 mini, SONY Xperia Z3, MI 3, MI PAD

*Support for additional Android devices available as testing and development continues.
